Hatches

Access, ventilation and light.

A hatch is a deliberate opening in the deck, and every deliberate opening is a controlled compromise of watertight integrity. Access, ventilation and natural light below deck are paid for with a coaming, a seal and a set of fastenings that must hold under green water loads. Specification, inspection and documented maintenance are what keep that compromise controlled.

Components of a hatch assembly

A complete hatch is a stack of six functional parts. Each must be specified, installed and maintained as a system — a failure in any one component compromises the entire opening.

• Coaming

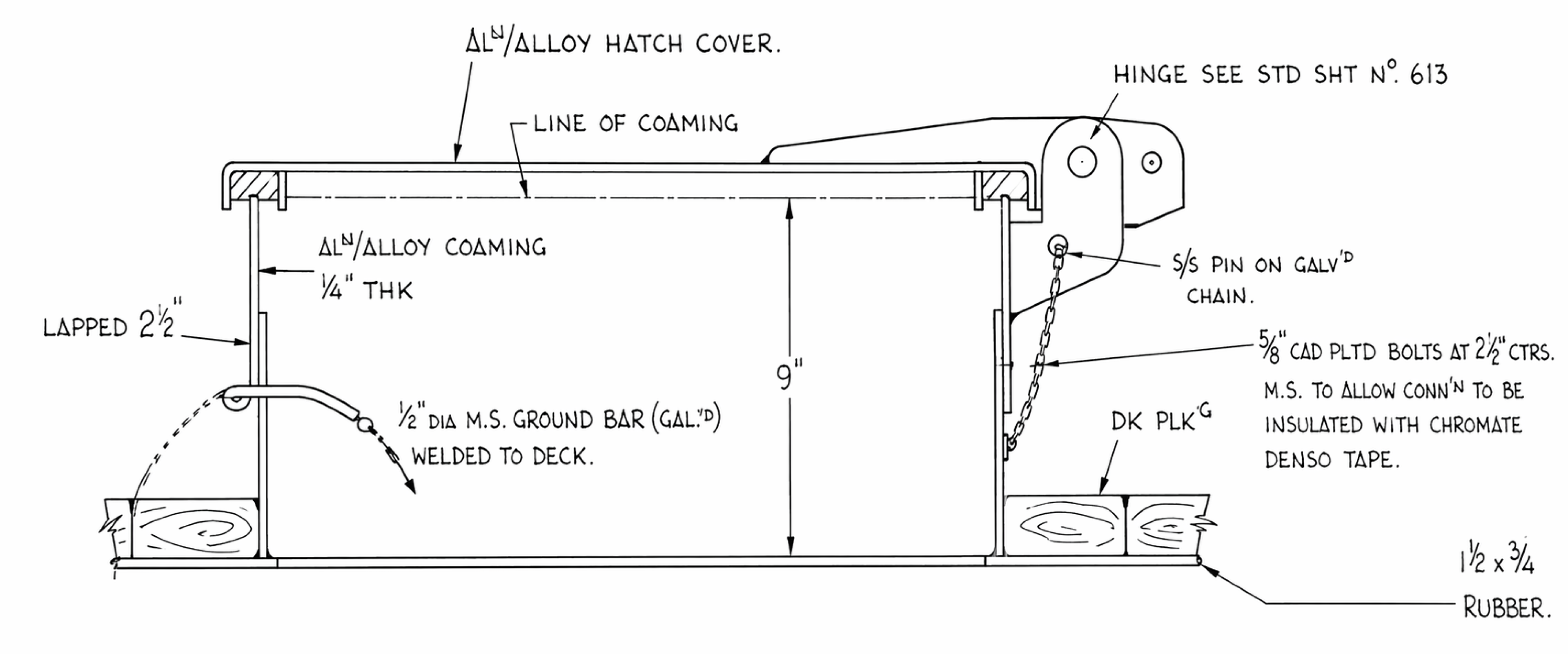

  The raised rim around the opening, typically 9 inches (230 mm) tall on an offshore yacht. It lifts the seal line above the deck working height so solid water sweeping the deck runs past the opening rather than over it. The drawing above shows a 1/4-inch aluminium alloy coaming lapped 2-1/2 inches onto the deck flange — typical of naval and commercial specification.

• Hatch cover / lid

  The moving lid that seals the opening. Material is usually cast or extruded aluminium with a moulded or laminated acrylic lens for light transmission. Stiffness matters — a cover that deflects under foot load breaks the seal line before the gasket ever fails.

• Hinge assembly

  The pivot that connects cover to coaming. Stainless pin on galvanised chain (as drawn) is typical of older yachts; modern offshore hatches use captive stainless hinge pins with stop-stays. The hinge pin is the single highest-stress fastener on the whole assembly — green water on an open cover can tear the hinge out of the coaming.

• Dogs / latches

  The clamping mechanism that compresses the gasket. Offshore specification is typically two dogs minimum; four dogs for any hatch forward of the mast. Each dog must distribute clamping force evenly around the perimeter — uneven dog wear is the most common cause of a hatch that leaks under pressure washing but passes a static water test.

• Gasket / seal

  The elastomer seal between cover and coaming. Typical section is 1-1/2 × 3/4 inch rubber (as drawn) — closed-cell neoprene, EPDM or silicone. The gasket is the only consumable component on the hatch and has a defined service life. Hardening, compression set, tears and gaps at corner joints are all end-of-life indicators.

• Fasteners and bonding

  Coaming-to-deck fasteners are typically cadmium-plated mild steel bolts at 2-1/2 inch centres, insulated from an aluminium coaming with chromate Denso tape (as drawn) to prevent galvanic corrosion. Bonding is maintained by a 1/2-inch galvanised mild steel ground bar welded directly to the deck — electrical continuity across the hatch cutout so lightning and static paths are not broken.

---

Performance — access, ventilation and light

A hatch delivers three functions simultaneously. Its performance is measured by how well each is preserved over the vessel's life — opening and closing without binding, admitting air under passive and powered ventilation, and transmitting daylight without crazing or yellowing.

Access

Hatches on a yacht serve several distinct access purposes:

• Escape hatch — a designated emergency egress route from each sleeping cabin and the main saloon. ISO 12216 and most classification societies specify minimum clear opening dimensions (typically 450 × 450 mm). This is a life-safety item.

• Foredeck hatch — sail handling, anchor locker access, and ventilation of the forepeak. The most heavily loaded hatch on the boat — it is directly in the path of green water and spray.

• Companionway / saloon overhead hatches — daily access and ventilation while at anchor or alongside.

• Inspection and service hatches — access to tanks, bilges, engine spaces and steering gear. Often smaller, sometimes flush-mounted, but subject to the same watertight requirements.

Ventilation

Hatches provide the bulk of passive ventilation on a sailing yacht at anchor or below speed. Performance depends on:

• Open area — the clear aperture when the hatch is in its crack-vent or fully open position. Fixed deadlights have no ventilation area at all.

• Crack-vent stay — a mechanism that holds the cover open at a small angle for passive airflow while excluding heavy rain. A broken or seized stay is a common issue on older hatches.

• Insect screen compatibility — screens must fit under the cover without interfering with the gasket seal. A permanently deformed or trapped screen is a common cause of gasket failure.

Light transmission

Acrylic lenses (polymethyl methacrylate, PMMA) degrade under UV exposure over time — yellowing, surface crazing and loss of optical clarity are all age indicators. Cracked lenses are a dual failure: loss of light transmission and loss of watertight integrity. Replacement is scheduled by elapsed service life, not cosmetic appearance — a crazed lens is structurally compromised even if it still passes a visual test.

---

Integrity — watertight under load

A hatch has to resist two distinct water loads. Static rainfall is the benign case — slow, low-pressure, essentially a function of gasket compression. Green water is the design case — the sea breaking solid across the foredeck at cruising speed in a seaway, loading the cover in the direction of opening with kilonewtons of impulse force. A hatch that seals against rain can still fail catastrophically under green water.

Integrity depends on a stack of conditions, each independently verifiable:

• Gasket compression — the elastomer must be squeezed evenly around the full perimeter when the dogs are fully seated. Compression set, hardening and corner gaps are the primary failure modes. A dry-marker trace around the seal before closing is the field test — an unbroken mark after opening means a complete seal.

• Cover stiffness — the lid must not deflect more than the gasket can take up under expected load. Footprint loads while stepping on the hatch, wave impact loads under way, and clamp-down loads from the dogs all count. Check by pressing the centre of a closed hatch — if the seal opens visibly, the cover is under-stiffened or the dogs are under-adjusted.

• Dog adjustment — each dog must pull the cover down to the gasket's design compression. Worn dog pads, stretched linkages and slipping cams all reduce clamping force. Uneven dog loading is usually diagnosed by a gasket that shows compression marks on one side of the cover and none on the other.

• Coaming integrity — the vertical wall of the coaming must be straight, square and un-dented. A dented coaming creates a gap under the seal that no amount of gasket compression can bridge.

• Coaming-to-deck seal — the flange of the coaming must remain bedded to the deck with an un-failed sealant line. A failed bed allows water below the seal line, direct into the deck lamination. This is the invisible failure mode — no water appears inside the cabin, but water is quietly wetting the deck core.

• Fastener isolation and bonding — galvanic isolation of dissimilar metals, plus continuous electrical bonding across the hatch cutout. The chromate Denso tape wrap around each bolt (as drawn) is the isolation detail; the welded ground bar is the bonding detail. Both must be intact.

• Lens condition — cracked, crazed or de-bonded acrylic lenses are integrity failures, not cosmetic ones. Any crack through the thickness of the lens is a leak path.

---

Maintenance and lifecycle tracking

Hatch maintenance is predictable and cheap when tracked, and expensive when not. Most hatch failures are the end of a long chain of missed indicators — a hardening gasket, a seeping bolt, a slightly deflected dog — that would each have been a ten-minute fix caught in time. The record per hatch is what makes the difference.

Record	Why it matters
Location and purpose	Foredeck, saloon, aft cabin, inspection — which load case this hatch is designed for.
Manufacturer, model and serial	For replacement parts, gasket sets and lens ordering without re-measuring.
Clear opening dimensions	Verify ISO 12216 escape requirement; reference for insect screen and shade cover fabrication.
Gasket product and fitted date	Schedule renewal before compression set fails — elastomers degrade on a predictable timeline.
Coaming bedding date and product	Track the hidden sealant line — deck core saturation starts here.
Lens fitted date and material	Acrylic lenses have a UV-driven service life measured in years; replacement is scheduled, not reactive.
Leak / water test result	Annual hose test per hatch — the primary evidence of intact watertight integrity.
Dog adjustment notes	Per-dog torque or stroke record catches asymmetric wear before it becomes a leak.

Every hatch on the deck is part of the vessel's watertight envelope — with hull, keel and appendages, with every through-hull fitting, and with the deck itself. Track them individually, inspect them on a cadence, and replace consumables before they reach end of life.

---
